OpenShift CI/CD with TekTon

OpenShift is RedHat’s distribution of Kubernetes with many additional features. Interestingly the new trend is, many organisations are considering Kubernetes/OpenShift for setting up their CI/CD apart from Container Orchestration. This post will demonstrate setting up a CI/CD Tekton pipeline within OpenShift cluster.

Tekton is an opensource project developed and maintained by the Community. Google, Red Hat, IBM, individuals are some major contributors to this project.

I’m sure you are already using one of the CI/CD Servers in this list Jenkins/Cloudbees, TeamCity, Bamboo, TFS, etc., All these Servers must be running 24/7 for entire project life-time, even when no one does any coding activity during Christmas/New Year.

TekTon is serverless, i.e knative CI/CD Framework that can be installed within the OpenShift cluster. You could setup webhook in GitHub to trigger the CI/CD pipeline that is created in Openshift using TekTon.

I’m assuming you already have an OpenShift cluster up and running. My OpenShift cluster looks like this

(jegan@tektutor.org)$ oc version
Client Version: 4.10.0-202203141248.p0.g6db43e2.assembly.stream-6db43e2
Server Version: 4.10.5
Kubernetes Version: v1.23.3+e419edf

(jegan@tektutor.org)$ tkn version
Client version: 0.22.0
Pipeline version: v0.34.1

(jegan@tektutor.org)$ oc get nodes
NAME STATUS ROLES AGE VERSION
master-1.ocp.tektutor.org Ready master,worker 4d1h v1.23.3+e419edf
master-2.ocp.tektutor.org Ready master,worker 4d1h v1.23.3+e419edf
master-3.ocp.tektutor.org Ready master,worker 4d1h v1.23.3+e419edf
worker-1.ocp.tektutor.org Ready worker 4d v1.23.3+e419edf
worker-2.ocp.tektutor.org Ready worker 4d v1.23.3+e419edf

You can install Tekton Pipeline Operator via CLI or OpenShift webconsole.

Installing Tekton Pipeline via OpenShift CLI. Ofcourse, you should be a kubeadmin to do this.

oc new-project tekton-pipelines
oc adm policy add-scc-to-user anyuid -z tekton-pipelines-controller
oc adm policy add-scc-to-user anyuid -z tekton-pipelines-webhook
oc apply --filename https://storage.googleapis.com/tekton-releases/pipeline/latest/release.notags.yaml

Tekton CI/CD Framework adds many Custom Resources to OpenShift. To name a few

Task
Pipeline
TaskRun
PipelineRun

You may check the CRDs installed in OpenShift as shown below

(jegan@tektutor.org)$ oc get crds
NAME CREATED AT
addresspools.metallb.io 2022-03-27T01:42:23Z
alertmanagerconfigs.monitoring.coreos.com 2022-03-27T00:55:51Z
alertmanagers.monitoring.coreos.com 2022-03-27T00:55:54Z
apirequestcounts.apiserver.openshift.io 2022-03-27T01:02:45Z
apiservers.config.openshift.io 2022-03-27T00:55:20Z
applicationbackups.stork.libopenstorage.org 2022-03-28T23:27:42Z
applicationbackupschedules.stork.libopenstorage.org 2022-03-28T23:27:52Z
applicationclones.stork.libopenstorage.org 2022-03-28T23:27:47Z
applicationregistrations.stork.libopenstorage.org 2022-03-28T23:27:37Z
applicationrestores.stork.libopenstorage.org 2022-03-28T23:27:42Z
authentications.config.openshift.io 2022-03-27T00:55:20Z
authentications.operator.openshift.io 2022-03-27T00:55:54Z
backuplocations.stork.libopenstorage.org 2022-03-28T23:27:32Z
baremetalhosts.metal3.io 2022-03-27T00:55:48Z
bfdprofiles.metallb.io 2022-03-27T01:42:22Z
bgppeers.metallb.io 2022-03-27T01:42:23Z
bmceventsubscriptions.metal3.io 2022-03-27T00:55:51Z
builds.config.openshift.io 2022-03-27T00:55:20Z
catalogsources.operators.coreos.com 2022-03-27T00:55:51Z
cloudcredentials.operator.openshift.io 2022-03-27T00:55:38Z
clusterautoscalers.autoscaling.openshift.io 2022-03-27T00:55:51Z
clustercsidrivers.operator.openshift.io 2022-03-27T00:56:31Z
clusterdomainsstatuses.stork.libopenstorage.org 2022-03-28T23:27:22Z
clusterdomainupdates.stork.libopenstorage.org 2022-03-28T23:27:27Z
clusternetworks.network.openshift.io 2022-03-27T01:00:20Z
clusteroperators.config.openshift.io 2022-03-27T00:55:08Z
clusterpairs.stork.libopenstorage.org 2022-03-28T23:27:12Z
clusterresourcequotas.quota.openshift.io 2022-03-27T00:55:18Z
clusterserviceversions.operators.coreos.com 2022-03-27T00:55:54Z
clustertasks.tekton.dev 2022-03-29T07:23:16Z
clusterversions.config.openshift.io 2022-03-27T00:55:08Z
conditions.tekton.dev 2022-03-29T07:23:16Z
configs.imageregistry.operator.openshift.io 2022-03-27T00:55:51Z
configs.operator.openshift.io 2022-03-27T00:55:56Z
configs.samples.operator.openshift.io 2022-03-27T00:55:48Z
consoleclidownloads.console.openshift.io 2022-03-27T00:55:48Z
consoleexternalloglinks.console.openshift.io 2022-03-27T00:55:48Z
consolelinks.console.openshift.io 2022-03-27T00:55:48Z
consolenotifications.console.openshift.io 2022-03-27T00:55:48Z
consoleplugins.console.openshift.io 2022-03-27T00:55:48Z
consolequickstarts.console.openshift.io 2022-03-27T00:55:48Z
consoles.config.openshift.io 2022-03-27T00:55:21Z
consoles.operator.openshift.io 2022-03-27T00:55:48Z
consoleyamlsamples.console.openshift.io 2022-03-27T00:55:48Z
containerruntimeconfigs.machineconfiguration.openshift.io 2022-03-27T00:56:08Z
controllerconfigs.machineconfiguration.openshift.io 2022-03-27T01:01:39Z
credentialsrequests.cloudcredential.openshift.io 2022-03-27T00:55:38Z
csisnapshotcontrollers.operator.openshift.io 2022-03-27T00:55:50Z
dnses.config.openshift.io 2022-03-27T00:55:21Z
dnses.operator.openshift.io 2022-03-27T00:55:56Z
dnsrecords.ingress.operator.openshift.io 2022-03-27T00:55:54Z
egressnetworkpolicies.network.openshift.io 2022-03-27T01:00:20Z
egressrouters.network.operator.openshift.io 2022-03-27T00:55:59Z
etcds.operator.openshift.io 2022-03-27T00:55:48Z
featuregates.config.openshift.io 2022-03-27T00:55:22Z
firmwareschemas.metal3.io 2022-03-27T00:55:54Z
groupvolumesnapshots.stork.libopenstorage.org 2022-03-28T23:27:07Z
helmchartrepositories.helm.openshift.io 2022-03-27T00:55:48Z
hostfirmwaresettings.metal3.io 2022-03-27T00:55:56Z
hostsubnets.network.openshift.io 2022-03-27T01:00:20Z
imagecontentpolicies.config.openshift.io 2022-03-27T00:55:22Z
imagecontentsourcepolicies.operator.openshift.io 2022-03-27T00:55:23Z
imagepruners.imageregistry.operator.openshift.io 2022-03-27T00:56:25Z
images.config.openshift.io 2022-03-27T00:55:22Z
infrastructures.config.openshift.io 2022-03-27T00:55:23Z
ingresscontrollers.operator.openshift.io 2022-03-27T00:55:41Z
ingresses.config.openshift.io 2022-03-27T00:55:24Z
installplans.operators.coreos.com 2022-03-27T00:55:58Z
ippools.whereabouts.cni.cncf.io 2022-03-27T01:00:19Z
kubeapiservers.operator.openshift.io 2022-03-27T00:56:19Z
kubecontrollermanagers.operator.openshift.io 2022-03-27T00:55:59Z
kubeletconfigs.machineconfiguration.openshift.io 2022-03-27T00:56:10Z
kubeschedulers.operator.openshift.io 2022-03-27T00:55:54Z
kubestorageversionmigrators.operator.openshift.io 2022-03-27T00:55:48Z
machineautoscalers.autoscaling.openshift.io 2022-03-27T00:55:54Z
machineconfigpools.machineconfiguration.openshift.io 2022-03-27T00:56:15Z
machineconfigs.machineconfiguration.openshift.io 2022-03-27T00:56:13Z
machinehealthchecks.machine.openshift.io 2022-03-27T00:56:32Z
machines.machine.openshift.io 2022-03-27T00:56:31Ztkn hub install task git-clone
tkn hub install task maven
machinesets.machine.openshift.io 2022-03-27T00:56:32Z
memcacheds.cache.example.com 2022-03-28T02:41:16Z
metallbs.metallb.io 2022-03-27T01:42:23Z
migrations.stork.libopenstorage.org 2022-03-28T23:27:17Z
migrationschedules.stork.libopenstorage.org 2022-03-28T23:27:22Z
namespacedschedulepolicies.stork.libopenstorage.org 2022-03-28T23:26:56Z
netnamespaces.network.openshift.io 2022-03-27T01:00:20Z
network-attachment-definitions.k8s.cni.cncf.io 2022-03-27T01:00:19Z
networks.config.openshift.io 2022-03-27T00:55:24Z
networks.operator.openshift.io 2022-03-27T00:55:52Z
oauths.config.openshift.io 2022-03-27T00:55:24Z
olmconfigs.operators.coreos.com 2022-03-27T00:56:04Z
openshiftapiservers.operator.openshift.io 2022-03-27T00:55:48Z
openshiftcontrollermanagers.operator.openshift.io 2022-03-27T00:55:52Z
operatorconditions.operators.coreos.com 2022-03-27T00:56:06Z
operatorgroups.operators.coreos.com 2022-03-27T00:56:09Z
operatorhubs.config.openshift.io 2022-03-27T00:55:18Z
operatorpkis.network.operator.openshift.io 2022-03-27T00:56:01Z
operators.operators.coreos.com 2022-03-27T00:56:12Z
overlappingrangeipreservations.whereabouts.cni.cncf.io 2022-03-27T01:00:19Z
perconaxtradbbackups.pxc.percona.com 2022-03-28T23:05:23Z
perconaxtradbclusterbackups.pxc.percona.com 2022-03-28T23:05:23Z
perconaxtradbclusterrestores.pxc.percona.com 2022-03-28T23:05:23Z
perconaxtradbclusters.pxc.percona.com 2022-03-28T23:05:23Z
pipelineresources.tekton.dev 2022-03-29T07:23:16Z
pipelineruns.tekton.dev 2022-03-29T07:23:16Z
pipelines.tekton.dev 2022-03-29T07:23:16Z
podmonitors.monitoring.coreos.com 2022-03-27T00:55:56Z
podnetworkconnectivitychecks.controlplane.operator.openshift.io 2022-03-27T01:31:34Z
preprovisioningimages.metal3.io 2022-03-27T00:55:59Z
probes.monitoring.coreos.com 2022-03-27T00:55:59Z
profiles.tuned.openshift.io 2022-03-27T00:55:54Z
projects.config.openshift.io 2022-03-27T00:55:25Z
prometheuses.monitoring.coreos.com 2022-03-27T00:56:01Z
prometheusrules.monitoring.coreos.com 2022-03-27T00:56:03Z
provisionings.metal3.io 2022-03-27T00:56:34Z
proxies.config.openshift.io 2022-03-27T00:55:18Z
rangeallocations.security.internal.openshift.io 2022-03-27T00:55:19Z
rolebindingrestrictions.authorization.openshift.io 2022-03-27T00:55:18Z
rules.stork.libopenstorage.org 2022-03-28T23:26:45Z
runs.tekton.dev 2022-03-29T07:23:16Z
schedulepolicies.stork.libopenstorage.org 2022-03-28T23:26:51Z
schedulers.config.openshift.io 2022-03-27T00:55:25Z
securitycontextconstraints.security.openshift.io 2022-03-27T00:55:19Z
servicecas.operator.openshift.io 2022-03-27T00:55:53Z
servicemonitors.monitoring.coreos.com 2022-03-27T00:56:06Z
storageclusters.core.libopenstorage.org 2022-03-28T23:24:34Z
storagenodes.core.libopenstorage.org 2022-03-28T23:24:34Z
storages.operator.openshift.io 2022-03-27T00:56:32Z
storagestates.migration.k8s.io 2022-03-27T00:55:54Z
storageversionmigrations.migration.k8s.io 2022-03-27T00:55:51Z
subscriptions.operators.coreos.com 2022-03-27T00:56:28Z
taskruns.tekton.dev 2022-03-29T07:23:16Z
tasks.tekton.dev 2022-03-29T07:23:16Z
tektonaddons.operator.tekton.dev 2022-03-29T06:17:22Z
tektonconfigs.operator.tekton.dev 2022-03-29T06:17:22Z
tektoninstallersets.operator.tekton.dev 2022-03-29T06:17:22Z
tektonpipelines.operator.tekton.dev 2022-03-29T06:17:22Z
tektontriggers.operator.tekton.dev 2022-03-29T06:17:22Z
thanosrulers.monitoring.coreos.com 2022-03-27T00:56:08Z
tuneds.tuned.openshift.io 2022-03-27T00:55:56Z
volumesnapshotclasses.snapshot.storage.k8s.io 2022-03-27T01:03:25Z
volumesnapshotcontents.snapshot.storage.k8s.io 2022-03-27T01:03:23Z
volumesnapshotdatas.volumesnapshot.external-storage.k8s.io 2022-03-28T23:27:01Z
volumesnapshotrestores.stork.libopenstorage.org 2022-03-28T23:27:02Z
volumesnapshots.snapshot.storage.k8s.io 2022-03-27T01:03:22Z
volumesnapshots.volumesnapshot.external-storage.k8s.io 2022-03-28T23:27:01Z
volumesnapshotschedules.stork.libopenstorage.org 2022-03-28T23:27:02Z

Let’s get familiar with some basic Tekton jargons before creating a Tekton CI/CD pipeline.

Workspace

is a directory used by Tasks in a Tekton pipeline
ConfigMaps can be mounted in a workspace
Secrets can be mounted in a workspace
PersistentVolumeClaims can be mounted in a workspace

Task

is the most basic unit that can be deployed and executed independently in Tekton
each Task creates a separate Pod
has one or more Steps
each Step creates a separate container within the Task Pod
tasks can be executed independently via TaskRun
tasks can be shared by one or more Pipelines
tasks can take parameters
tasks use one or more Workspace(s) to retrieve inputs and store outputs

TaskRun

represents a session of Task execution
each time a Task is executed, it creates a separate TaskRun
holds the logs that were created during the execution
supplies parameter values required by a Task
explains what needs to be mounted in the workspace

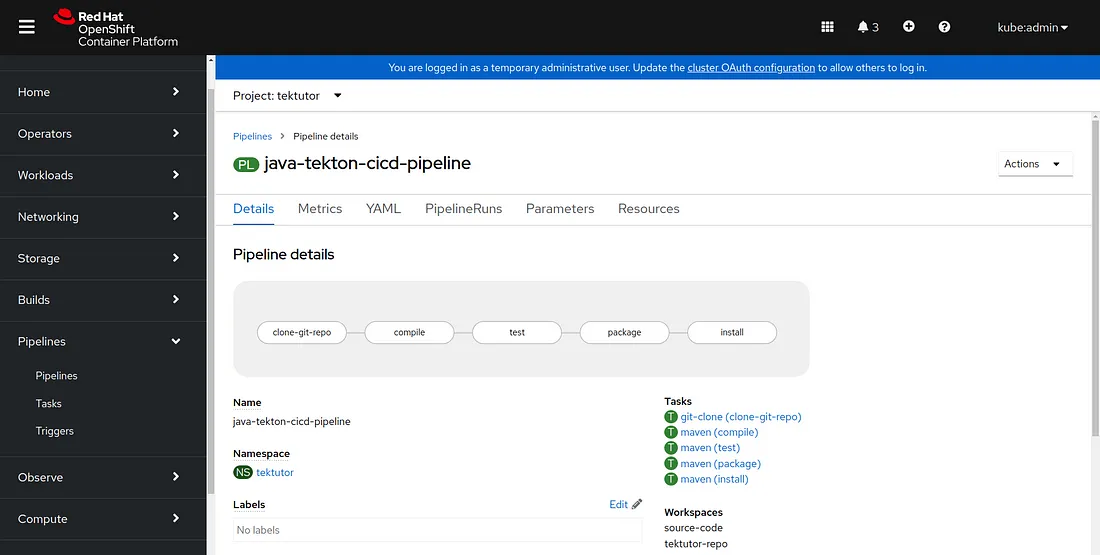

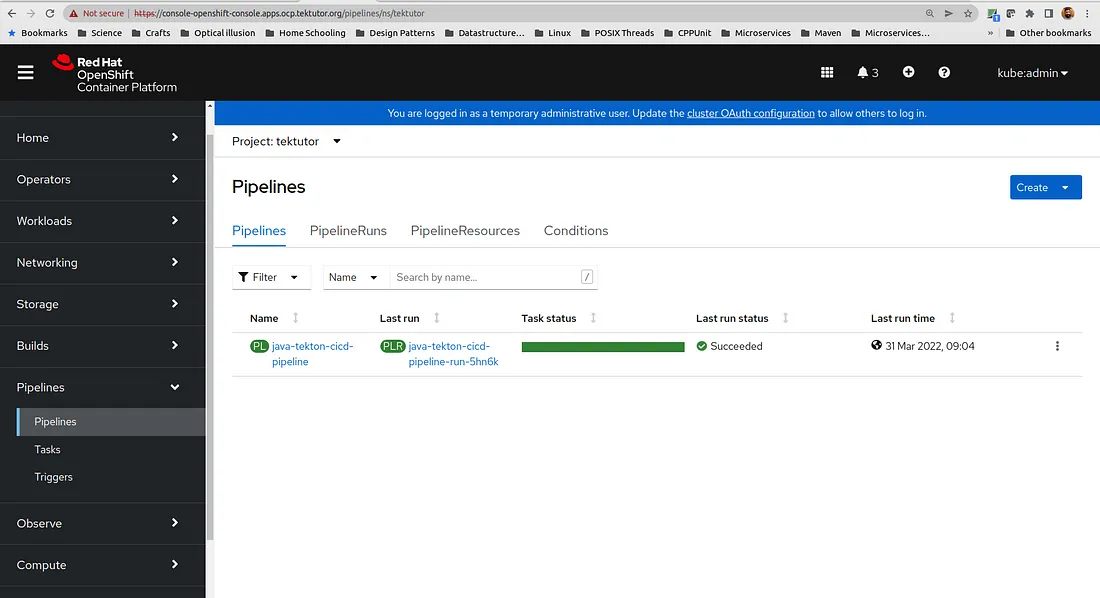

Pipeline

is a chain of Tasks that can be executed in sequence, parallel to other tasks or a combination of them as per your requirement

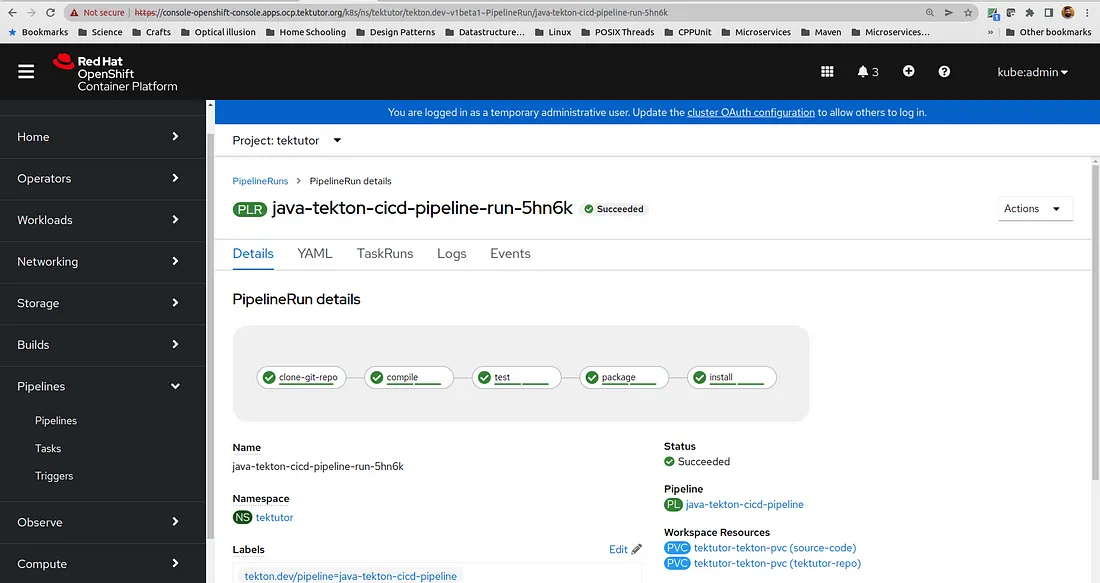

each time the Pipeline is executed, it creates a separate PipelineRun
represents CI/CD pipeline

PipelineRun

represents one session of Pipeline execution
supplies the parameter values and workspace configurations to the Pipeline
holds the logs that were created during the execution

Tekton Pipeline can be created via CLI or via Pipeline Dashboard or OpenShift webconsole.

Let’s create a Tekton CI/CD pipeline via manifest file

java-tekton-cicd-pipeline.yml

# Reserve 500 MB disk space for Persistent Volume
apiVersion: v1
kind: PersistentVolume
metadata:
  name: tektutor-tekton-pv
spec:
  capacity:
    storage: 500Mi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    server: "192.168.1.80"
    path: "/mnt/nfs_share"
---
# Request for 500 Mb disk space from one of the Persistent Volume
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: tektutor-tekton-pvc
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 500Mi
---
# Create a pipelineapiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: java-cicd-pipeline
spec:
  tasks:
    - name: clone-git-repo
      params:
        - name: url
          value: 'https://github.com/tektutor/spring-ms.git'# This is the git branch that you wish you clone
        - name: revision
          value: master
      taskRef:
        kind: Task
        name: git-clone
      workspaces:
        - name: output
          workspace: source-code# Task that compiles your maven project
    - name: compile
      params:
       - name: GOALS
          value:
            - -Dmaven.repo.local=$(workspaces.maven-settings.path)
            - compile
      runAfter:
        - clone-git-repo
      taskRef:
        kind: Task
        name: maven
      workspaces:
        - name: source
          workspace: source-code
        - name: maven-settings
          workspace: maven-repo# Task that performs unit-test on your maven project
    - name: test
      params:
       - name: GOALS
          value:
            - -Dmaven.repo.local=$(workspaces.maven-settings.path)
            - test
      runAfter:
        - compile
      taskRef:
        kind: Task
        name: maven
      workspaces:
        - name: source
          workspace: source-code
        - name: maven-settings
          workspace: maven-repo# Task that packages your unit-tested maven project
    - name: package
      params:
        - name: GOALS
          value:
            - -Dmaven.repo.local=$(workspaces.maven-settings.path)
            - package
      runAfter:
        - test
      taskRef:
        kind: Task
        name: maven
      workspaces:
        - name: source
          workspace: source-code
        - name: maven-settings
          workspace: maven-repo# Task that installs the packaged binaries into your local maven repository
    - name: install
      params:
        - name: GOALS
          value:
            - -Dmaven.repo.local=$(workspaces.maven-settings.path)
            - install
      runAfter:
        - package
      taskRef:
        kind: Task
        name: maven
      workspaces:
        - name: source
          workspace: source-code
        - name: maven-settings
          workspace: maven-repo
  workspaces:
    - name: source-code
    - name: maven-repo---
# PipelineRunapiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
  name: java-cicd-pipeline-run
spec:
  pipelineRef:
    name: java-cicd-pipeline
  serviceAccountName: default
  workspaces:
    - name: source-code
      persistentVolumeClaim:
        claimName: tektutor-tekton-pvc
      subPath: source
    - name: maven-repo
      persistentVolumeClaim:
        claimName: tektutor-tekton-pvc
      subPath: m2

We need to install the below tasks from Tekton Hub https://hub.tekton.dev/.

tkn hub install task git-clone
tkn hub install task maven

In case the above commands didn’t work for you, you may to install the tasks as shown below.

oc apply -f https://raw.githubusercontent.com/tektoncd/catalog/main/task/git-clone/0.5/git-clone.yamloc apply -f https://raw.githubusercontent.com/tektoncd/catalog/main/task/maven/0.2/maven.yaml

You may now create the pipeline as shown below

oc new-project tektutor
oc create -f java-tekton-cicd-pipeline.yml

Expected output is

(jegan@tektutor.org)$ oc create -f java-tekton-cicd-pipeline.yml
persistentvolume/tektutor-tekton-pv created
persistentvolumeclaim/tektutor-tekton-pvc created
pipeline.tekton.dev/java-tekton-cicd-pipeline created
pipelinerun.tekton.dev/java-tekton-cicd-pipeline-run-d56fg created

If you wish to see the pipeline in Openshift webconsole, it looks as shown below
